Lead πⅠF–4020

Category:

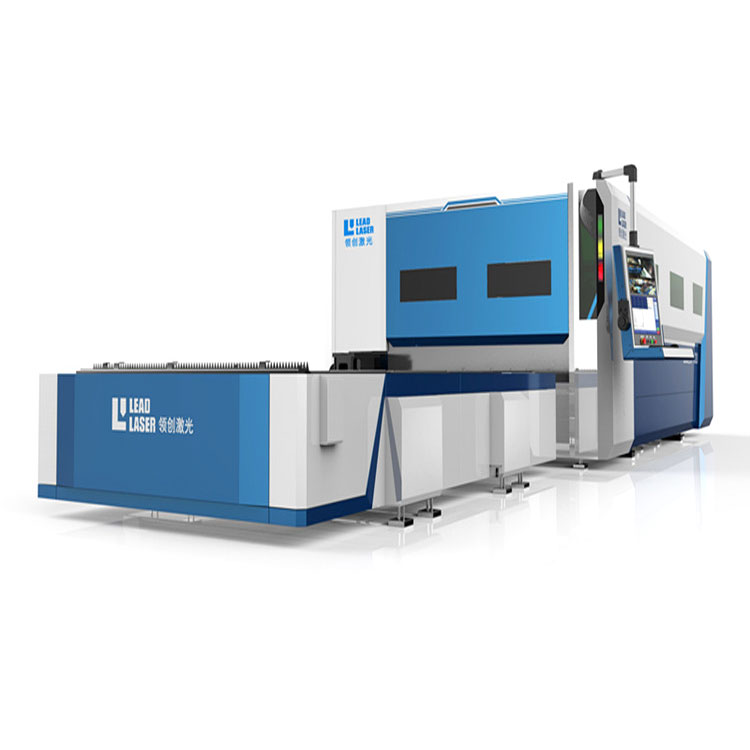

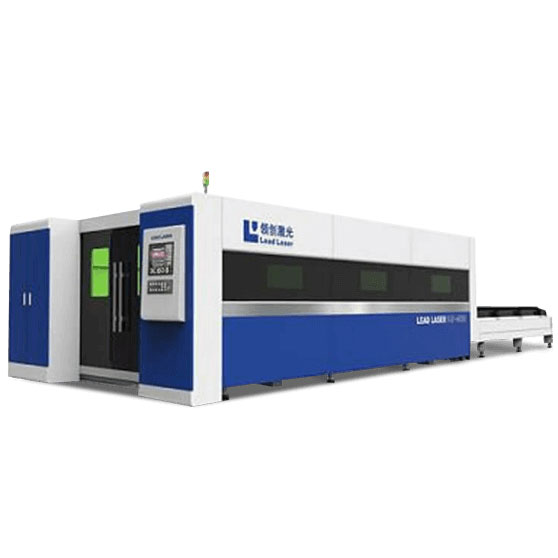

This Excalibur 4020 is one high performance laser cutting machine with fast acceleration speed, more accuracy, high dynamic, user-friendly and so on, very suitable for large production demand.

Feature

  • It is with all-purpose gantry type flying optics laser cutting machine.
  • Shuttle table in the front of the machine close to the operator access to the cutting head for full overview in production
  • Modern graphical user CNC control interface with virtually unlimited program memory
  • 21.5″ touch screen operator panel with Lead Laser Suite graphical user interface
  • 21.5″ monitor with 4 cameras inside the working area
  • CE certified safety light curtain around the shuttle table
  • Automatic cutting head height sensor system with capacitive distance sensor
  • On-board data base with cutting and piercing parameters for all materials and thickness
  • On-line correction of cutting and piercing parameters during processing

Specification

  • X axis stroke: 4010mm
  • Y axis stroke: 2025mm
  • Z axis stroke: 100mm
  • Cutting area: 2000mm × 4000mm
  • X- and Y-axis positioning accuracy: ±0.03mm/m
  • Repositioning accuracy: ±0.05mm
  • Maximum positioning speed X- and Y-axis: 130m/min
  • Maximum simultaneous X- and Y-axis positioning speed: 180m/min
