Lead πIF-3015

Category:

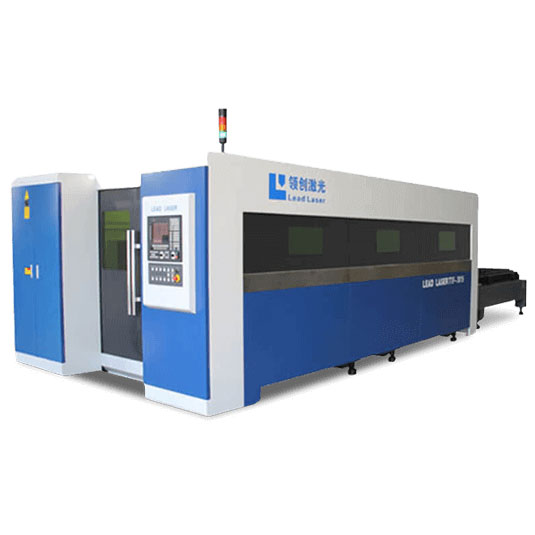

The Lead πIF-3015 Laser Cutting machine is a double-drive gantry type flying optics laser cutting machine, designed to offer high dynamics in fast-speed cutting.

Feature

  • The machine has a robust and rigid design that guarantees repeatable high precision cutting results
  • Both the working tables move in and out of the machine simultaneously, decreasing dramatically the time of the table change cycle and increasing the productivity of the machine. New sheets get faster in and cut sheets get faster out of the machine.
  • The machine features a completely closed cabin and offers safe and ergonomic operation. The large eye-safe windows allow an optimal overview of the entire working area of the machine.
  • The light-weight aluminum bridge assures accurate cutting results even under high-dynamic axis movements.
  • A long vertical stroke of the cutting head gives additional freedom in the cutting application: pre-formed sheets, tubes, profiles, etc. can easily be put on the cutting table and are in reach of the cutting head.
  • The machine lay-out is symmetric when it comes to the maintenance access from the sides: either side can be put close to a wall while having all the necessary reach to maintenance points on the opposite side.

Specification

  • X axis stroke: 3000mm
  • Y axis stroke: 1500mm
  • Z axis stroke: 250mm
  • Cutting area: 3000mm × 1500mm
  • X- and Y-axis positioning accuracy: ±0.03mm/m
  • Repositioning accuracy: ±0.02mm
  • Maximum positioning speed X- and Y-axis: 80m/min
  • Maximum simultaneous X- and Y-axis positioning speed: 110m/min
