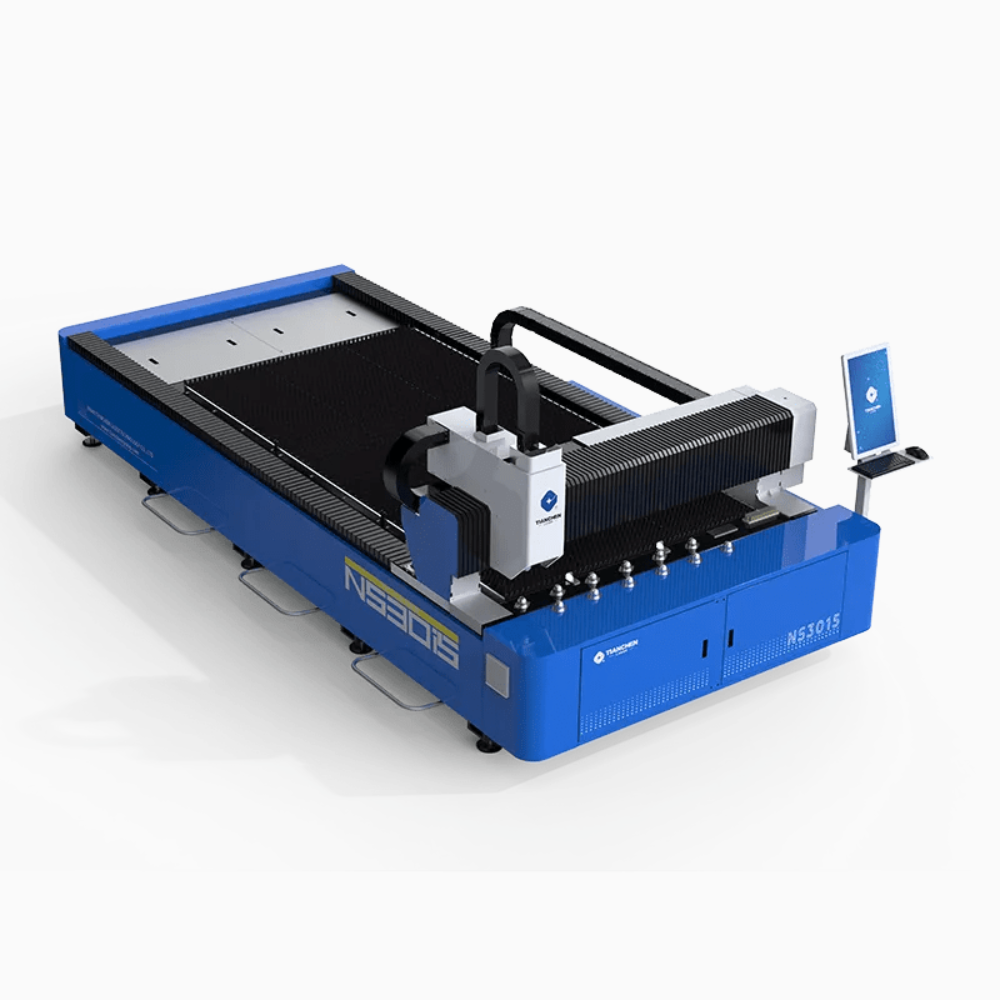

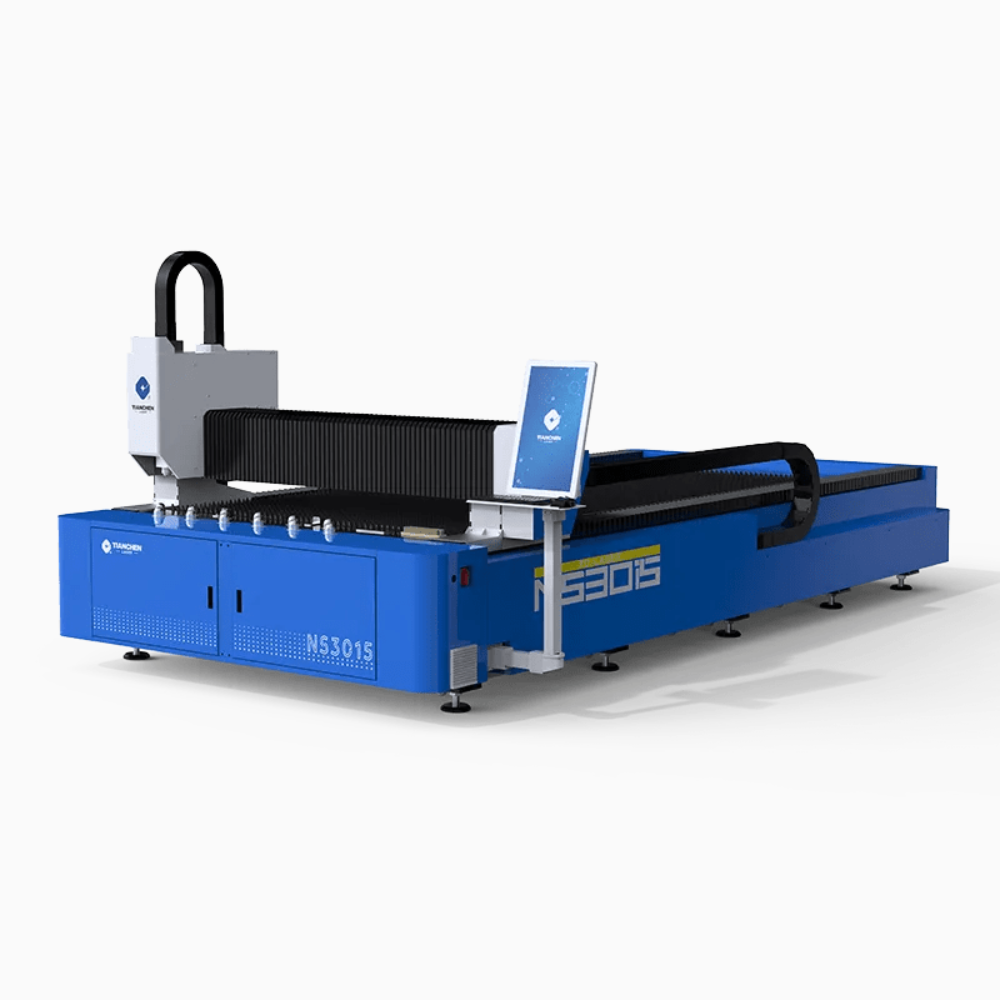

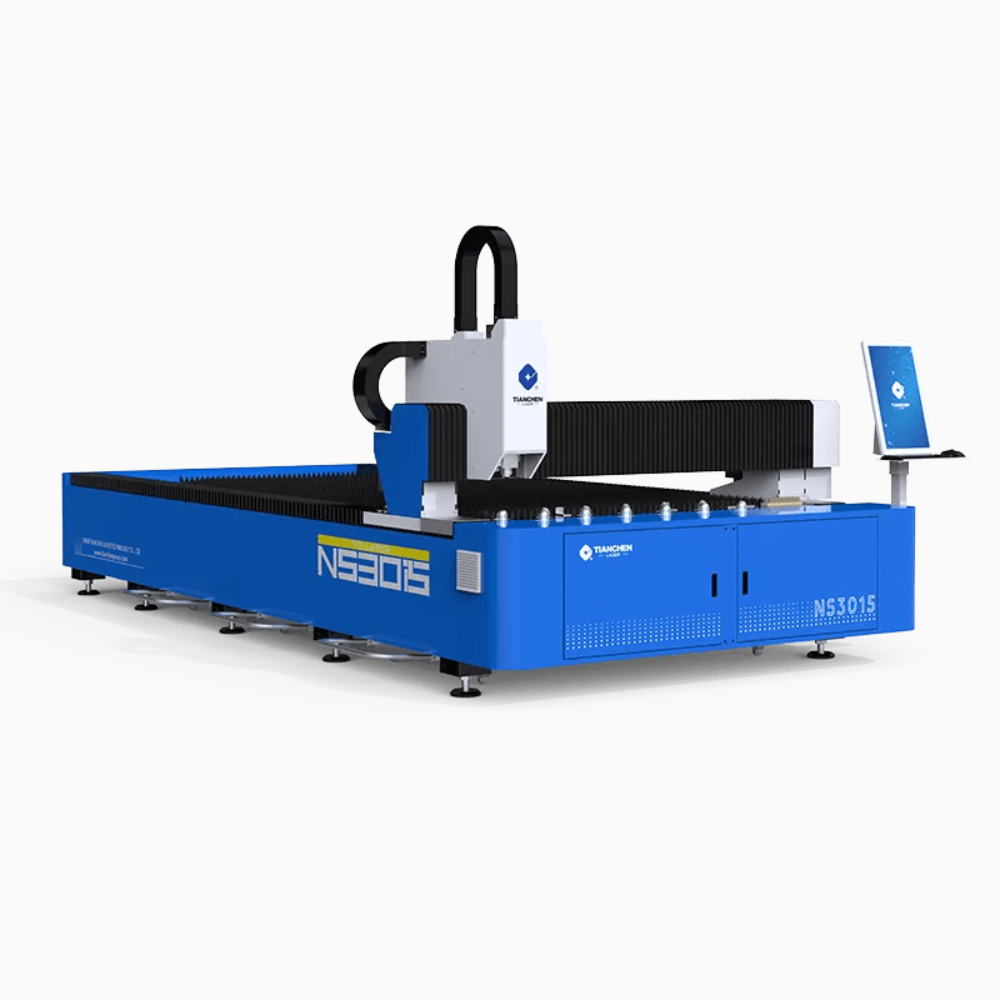

TC-NS Series Sheet Laser Cutting

The NS series economic single-platform laser cutting machine is an entry-level product. It is easy to operate, occupies a small floor space, saves site usage, and can be quickly put into production. With a low cost investment, it can achieve relatively high production efficiency.

Key Features:

  • Modular worktable design: The worktable features a modular design. It is detachable and convenient to replace, which facilitates maintenance.
  • High-precision motion transmission system: The high-quality guide rail has a low friction coefficient, which reduces the resistance during the transmission process and improves the acceleration performance.
  • Compact Model , Bulk transport: It can save overseas freight and is suitable for customers who prefer to place bulk orders.
Parameter Unit TC-NS3015 TC-NS4015 TC-NS6015 TC-NS4020 TC-NS6020
Working Area Length mm 3048 4064 6096 4064 6096
Width mm 1524 2032
Max. Acceleration g 1.0 1.2
Max. Moving Speed m/min 120 130
Position Accuracy mm 0.05
Repeated Position Accuracy mm 0.03
Suitable Laser Power kW 1 – 3
