CNC Tube Bending Machine - Multi-Stack, 6-Axis Servo
CNC Tube Bending Machine - Multi-Stack, 6-Axis Servo - Image 2
CNC Tube Bending Machine - Multi-Stack, 6-Axis Servo - Image 3
CNC Tube Bending Machine - Multi-Stack, 6-Axis Servo - Image 4
CNC Tube Bending Machine - Multi-Stack, 6-Axis Servo - Image 5
CNC Tube Bending Machine - Multi-Stack, 6-Axis Servo - Image 6

CNC Tube Bending Machine – Multi-Stack, 6-Axis Servo

Categories: ,

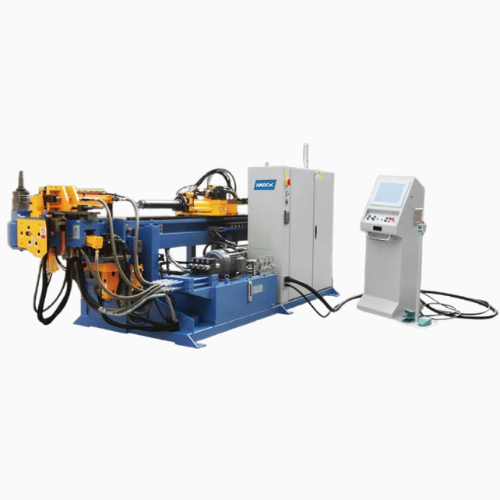

A fully automatic CNC tube bender equipped with 6-axis servo motor control for precise and synchronized motion. Supports both draw bending and push bending functions, with integrated 3D bending simulation to detect interference and optimize processing. Designed for high repeatability (±0.05°) and stable performance, it is suitable for complex tube geometries across a wide range of industrial applications. Tooling sizes are customizable to suit specific applications. Optional features such as additional safety systems and automation enhancements are available upon request.

* Please refer to the full product description for detailed specifications

Enquire Now



PRODUCT SPECIFICATIONS

Parameter Unit CNC10 CNC16 CNC25 CNC38 CNC50
Max. Tube OD mm 9.52 15.88 25.4 38.1 50.8
Max. Wall Thickness mm 1.5 1.5 1.5 2.0 2.5
Centerline Radius mm 60 90 120 180 220
Max. Bending Radius Difference mm 20 30 40 60 80
Max. Bending Angle ° 190
Max. Mandrel Distance mm 1200 1400 1800 2000 2500
Processing Speed Feeding mm/s 1200 1100 1000
Rotation °/s 300 260 240 200
Bending °/s 200 180 160 150 120
Accuracy` Feeding mm ± 0.05
Rotation ° ± 0.05
Bending ° ± 0.05
Hydraulic Motor Power kW 1.5 3.0 4.0 5.5 7.5
Total Motor Power kW 5.5 7.5 11.0 15.0 22.0
Oil Tank Capacity L 60 100 230
Overall Weight kg 1200 1400 1700 2500 3500
Operating Height mm 1100 1200
Dimensions Length mm 2600 2800 3500 4200 5000
Width mm 800 950 1150 1250 1350
Height mm 1450 1500 1600 1700
