CNC Electric Hybrid TBRE / TMRE Tube Bending Machine

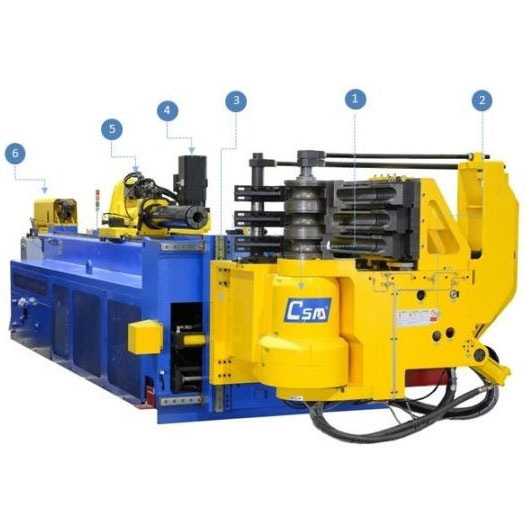

  1. – Bend-arm (C-axis) by servo motor with exclusive transmission gears. Tolerance within ± 0.01″
  2. – clamp die by hydraulic
    – pressure die by hydraulic
    – side booster by hydraulic
  3. – Tools/radii shifting: Motion up-down by hydraulic & left-right by servo motor
  4. – Carriage (Y-axis) by servo motor with programmable speed
  5. – Collect (B-axis) grip by hydraulic, rotation by servo motor
  6. – Mandrel by hydraulic with automatic lubrication & anticipated retraction
  • Industrial PC assorted with touch-screen display, capable of bending simulation, 3D preview and interference detection
  • Programmable speed for servo axes
  • With USB port, easy for data transfer
  • Convertible between manual / automatic mode
  • Convertible between inch / metric setting
  • Convertible between XYZ / YBC axes
  • Capable of reading igs/stp file
